Namco System 2

Sign in to edit

The Namco System 2 arcade system board was first used by Namco in 1987 and was a major enhancement to the previous Namco System 1 arcade system board.

Final Lap was the first game to use this board, and also the first to feature multiplayer. The following year, more games using this board were released, including Assault, Assault Plus, Ordyne, Metal Hawk, Mirai Ninja and Phelios. In 1989 they released Valkyrie No Densetsu, Dirt Fox, Finest Hour, Burning Force, Four Trax and Marvel Land.

Namco System 2 Specifications[]

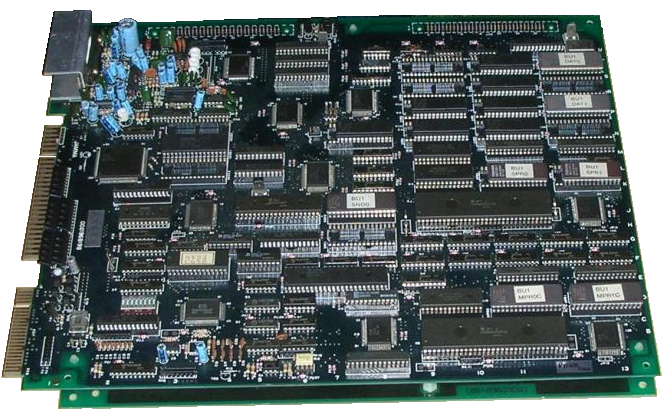

Burning Force arcade PCB, which runs on the Namco System 2

Burning Force arcade PCB, which runs on the Namco System 2

Processors:

  • Main CPU: Motorola 68000 @ 12.288 MHz
  • Sub CPU: Motorola 68000 @ 12.288 MHz
  • Sound CPU: Motorola 68B09 @ 2.048 MHz
  • MCU: Hitachi HD68705 @ 2.048 MHz

Video:

  • Video resolution 288ร—224 (horizontal) or 224ร—288 (vertical)
  • Variable-sized display window
  • 24-bit RGB palette
  • 3 scrolling 512ร—512 tilemap layers (64ร—64 characters)
  • 1 scrolling 512ร—256 tilemap layer (64ร—32 characters)
  • 2 fixed 288ร—224 tilemap layers (36ร—28 characters)
  • 1 fixed rotate/zoom tilemap layer
  • roadway generator (driving games only)
  • 127 variable-sized sprites (up to 64ร—64) displayed at once

Sound:

  • Yamaha YM2151 FM sound chip
  • Custom 24-channel stereo PCM chip
  • PCB supports volume, treble, bass, and balance audio adjustments via potentiometers.

List of Namco System 2 arcade games[]
