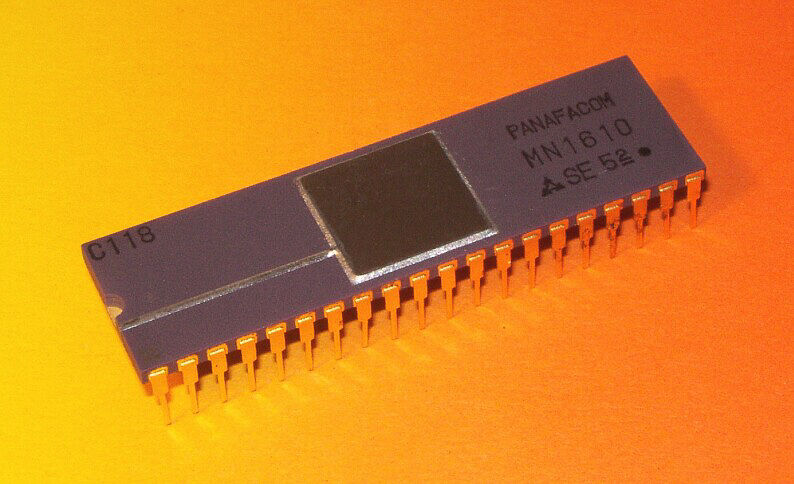

Panafacom MN1610 1.jpg
Panafacom MN1610

Panafacom (currently PFU) was a conglomerate of the Japanese companies—formed by Fujitsu, Fuji Electric and the Matsushita Group on July 2, 1973. They developed one of the first commercially available 16-bit microprocessors, the MN1610.[1][2][3][4] Released in 1975, it was "the world's first 16-bit microcomputer on a single chip" according to Fujitsu.[2]

The PANAFACOM Lkit-16 was a learning kit released in March 1977 to popularize the first 16-bit single-chip microcomputer. The microcomputer was equipped with the first 16-bit parallel high-performance single-chip processor (*1), developed by PANAFACOM in 1975.[4]

This processor provided better cost performance than conventional 8-bit microcomputers with its enhanced speed (about 200%) and reduced memory usage (about 60%). The unique features of the Lkit-16 were: (1) a simplified keyboard for assembler input, (2) console functions that allowed easy debugging, and (3) a built-in audio cassette interface for data I/O. Through a simplified program input by a one-step assembler and implementation of Tiny BASIC that was popular among microcomputer users at that time, the Lkit-16 greatly contributed to the expansion of computer knowledge from would-be engineers to amateur users who were interested in microcomputers. Main unit price was \98,000.Main specifications:- CPU: MN1610 (clock rate of 2 MHz, 16-bit parallel processing)- ROM: 1KW (maximum 2KW)- RAM: 0.5KW (maximum 1KW)- I/O port: MN1630- Other specifications: Equipped with an audio cassette interface*1[4]

This processor was developed by PANAFACOM in 1975, around the same time that the 16-bit single-chip type processor was first introduced to the world.[4]


  1. 16-bit Microprocessors. CPU Museum. Retrieved on 5 October 2010
  2. 2.0 2.1 History. PFU. Retrieved on 5 October 2010
  3. Panafacom 1613 Processors. Retrieved on 5 October 2010
  4. 4.0 4.1 4.2 4.3 PANAFACOM Lkit-16, Information Processing Society of Japan
